The XN-S01 combines ADAS, DMS, facial recognition, dual-channel vehicle video recording, 4G connectivity and GPS/BeiDou positioning in one vehicle-mounted device. It monitors forward-road risks and driver behavior, with configurable warning thresholds, remote video access and optional blind-spot detection (BSD).

For fleet equipment distributors, vehicle monitoring solution providers and commercial vehicle integrators, the XN-S01 offers configurable communication modules, storage capacity and external interfaces for different vehicle monitoring projects.


  • X9 AOV Dashcam
    unattended surveillance and smart security alerts, and satisfies vehicle, asset, fleet and logistics monitoring scenarios for both indoor and outdoor deployment. Featuring low power consumption,...
    read more
  • Driving Assistant Device
    The XN-S01 is a comprehensive automotive active safety product integrating satellite positioning, video surveillance, and active safety functions. This product meets the needs of fleet monitoring,...
    read more
  • Solar Wireless Camera
    XN-T01 is a solar-powered wireless infrared HD camera, equipped with 1080P full HD CMOS image sensor, large-capacity 10000 mAh built-in lithium battery + solar self-charging scheme, relying on...
    read more
  • 3-Channel AI Modular Dashcam
    This model is mainly used for on-board monitoring of freight/online car-hailing/operating fleet, with modular split lens design, upper lens ADAS front camera, lower lens DMS cabin camera, and...
    read more

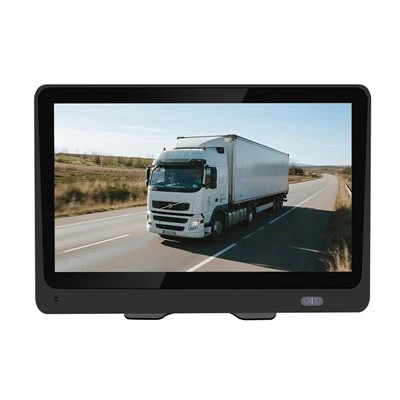

  • All-In-One Vehicle Video Recorder
    XN-S03 is a comprehensive automotive active safety product which integrates satellite positioning, video surveillance, active safety and other functions. This product meets the needs of fleet...
    read more


1. ADAS and DMS Functions for Driver Safety

The XN-S01 integrates forward-road monitoring and in-cabin driver monitoring.

Function Detection capability
Forward Collision Warning (FCW) Detects potential collisions with vehicles ahead
Pedestrian Collision Warning (PCW) Detects pedestrians, bicycles and motorcycles ahead
Fatigue Driving Detection Detects eye closure and yawning
Distraction Detection Monitors driver distraction
Phone Usage Detection Detects phone use while driving
Smoking Detection Detects smoking behavior
Seat Belt Detection Monitors seat belt usage
Facial Recognition Supports local facial recognition and comparison

Configurable warning conditions

  • FCW: Default minimum warning speed greater than 30 km/h. The front vehicle must be within the host vehicle's driving trajectory. Warning thresholds are based on Time to Collision (TTC).
  • FCW sensitivity: High, medium and low, with respective TTC thresholds of ≤3.5 seconds, ≤2.7 seconds and ≤1.8 seconds. Medium is the default setting.
  • PCW: Default warning speed range of 10–60 km/h, with a target detection distance condition below 5 m. Sensitivity is adjustable.
  • Fatigue detection: Default minimum warning speed greater than 30 km/h. Detection uses eye closure and yawning, with configurable duration and mouth aspect ratio thresholds.
  • Fatigue sensitivity: High, medium and low settings. The corresponding eye-closure or mouth-opening duration thresholds are approximately 1, 2 and 3 seconds, with mouth aspect ratio thresholds of approximately 0.4, 0.5 and 0.6.

These configurable thresholds provide different warning settings for fleet monitoring requirements.

2. Hardware Specifications and Vehicle Installation

The XN-S01 uses two 2MP cameras for forward-road and in-cabin recording.

Specification XN-S01 configuration
Front camera resolution 1920 × 1080
Front camera frame rate 25 fps
Front camera viewing angle D135°, H120°, V63°
Front camera aperture F1.8
In-cabin camera resolution 1920 × 1080
In-cabin camera frame rate 25 fps
In-cabin camera viewing angle D128°, H110°, V60°
In-cabin camera aperture F1.8
In-cabin night vision Infrared night vision with automatic light sensing
Video encoding H.264
Video file format TS
TF card capacity Up to 512GB
Main stream resolution 1080P / 720P
Main stream frame rate 1–25 fps
Operating voltage DC 9–36V
Operating power Less than 2W, excluding peripheral devices
Operating temperature -20°C to +70°C
Operating humidity 10%–90%
Operating system Linux
Processor Dual-core 1.2GHz
AI processing 0.5T NPU
Memory 1Gb DDR3L
Flash storage 128Mb NAND Flash

Video configuration: The product specifications distinguish between recording configurations. The algorithm version supports dual-channel 720P recording, while the non-algorithm recording configuration lists dual-channel 1080P capability. These should be treated as separate configurations when confirming an order.

The mainboard reserves one additional AHD 1080P, 30 fps video interface for external camera expansion. This interface is not an additional standard camera.

For installation, the recommended position is the upper windshield area, above the steering wheel. The front camera should be aligned with the horizon, while the driver's face should be positioned near the center of the in-cabin camera image. The device should be installed horizontally and calibrated after mounting.

3. 4G Connectivity, GPS/BeiDou Positioning and Fleet Management

The XN-S01 supports CAT1 or CAT4 communication configurations, with TDD-LTE and FDD-LTE options.

Published regional CAT1 frequency configurations

Regional version LTE-FDD bands LTE-TDD bands
Europe / Australia / New Zealand B1/B3/B5/B7/B8/B20/B28 Not listed
Latin America B2/B3/B4/B5/B7/B8/B28/B66 Not listed
China / India B1/B3/B5/B8 B34/B38/B39/B40/B41

Other communication and positioning specifications:

  • Wi-Fi: IEEE 802.11 b/g/n, 2.4GHz, built-in antenna.
  • Positioning: GPS and BeiDou.
  • Sensors: Built-in three-axis acceleration sensor.
  • Antennas: Built-in GPS and 4G antennas.

Remote monitoring functions

  • Live video viewing.
  • Historical video playback and downloading.
  • Remote snapshots.
  • Multimedia uploads.
  • Emergency alarms.
  • TTS text message delivery.
  • Two-way voice communication and listening.
  • APP and web-based operation.

The device supports 808/905 and 1078 protocol configurations. Specific protocol versions and integration requirements should be confirmed against the selected configuration and target fleet management platform.

4. Optional Interfaces and Configuration

The XN-S01 provides several expansion options for different vehicle monitoring projects.

Item Configuration
Alarm inputs 2 inputs, reserved on the mainboard; not included by default
Alarm output 1 low-level output, optional
RS232 1 interface for expansion devices such as card readers and fuel sensors; peripheral devices not included by default
BSD Front, rear, left and right blind-spot detection; requires external cameras
SOS button Optional
Power-loss protection Optional 5F/3.3V capacitor
Video expansion 1 reserved AHD 1080P, 30 fps interface

The optional capacitor helps protect video file integrity during unexpected power loss. BSD requires additional cameras and should be included as a separate configuration item.

Standard package contents

  • XN-S01 dual-channel recording device.
  • TF card cover and two small screws.
  • SIM card tray.
  • Power cable.

The SOS button is optional.

5. OEM/ODM Vehicle Monitoring Device Customization

We support OEM/ODM customization for distributors, importers and vehicle monitoring solution providers.

Available customization items include:

  • Branding: Logo, product labels, packaging, colors and housing appearance.
  • Hardware: Power supply, interfaces, I/O, sensors, cameras, antennas, cables and accessories.
  • Firmware: Alarm rules, reporting logic, sleep and wake-up strategies, and data reporting intervals.
  • Communication: Protocol adaptation, API integration, LTE frequency configurations, SIM/APN settings and server configurations.
  • Platform: Fleet management platform integration and project-specific software adjustments.

Our customization process includes sample evaluation, pilot testing, configuration confirmation, batch configuration control, QC, packaging and shipment coordination.

6. China-Based Vehicle Monitoring Equipment Supply and Quality Control

As a Shenzhen-based vehicle monitoring equipment supplier, we provide product development, equipment supply, platform integration and technical support for vehicle monitoring projects.

Our published quality control process covers 12 stages:

  • Incoming material inspection.
  • SMT processing.
  • Semi-finished product inspection.
  • Firmware programming.
  • Complete device assembly.
  • Functional testing.
  • Accuracy calibration.
  • Platform integration testing.
  • Aging testing.
  • Environmental reliability testing.
  • Finished product inspection.
  • Packaging and shipment.

Testing items include 4G connectivity, GPS/BeiDou positioning, SIM card operation, storage, ACC, relay, I/O, RS232, camera and audio functions.

Our company reports annual deliveries of more than 30,000 smart monitoring devices across its product portfolio. This is an overall company figure, not the annual production volume of the XN-S01 specifically.

For overseas projects, our support includes remote debugging, installation guidance, technical troubleshooting and ongoing system maintenance.

7. Request an XN-S01 Wholesale Quotation

Send us your target vehicle type, required ADAS/DMS functions, preferred 4G regional version and estimated order quantity.

You can also send an existing device specification sheet or installation photos. We will use your project information to identify the suitable XN-S01 configuration and provide a quotation for your purchasing requirements.
