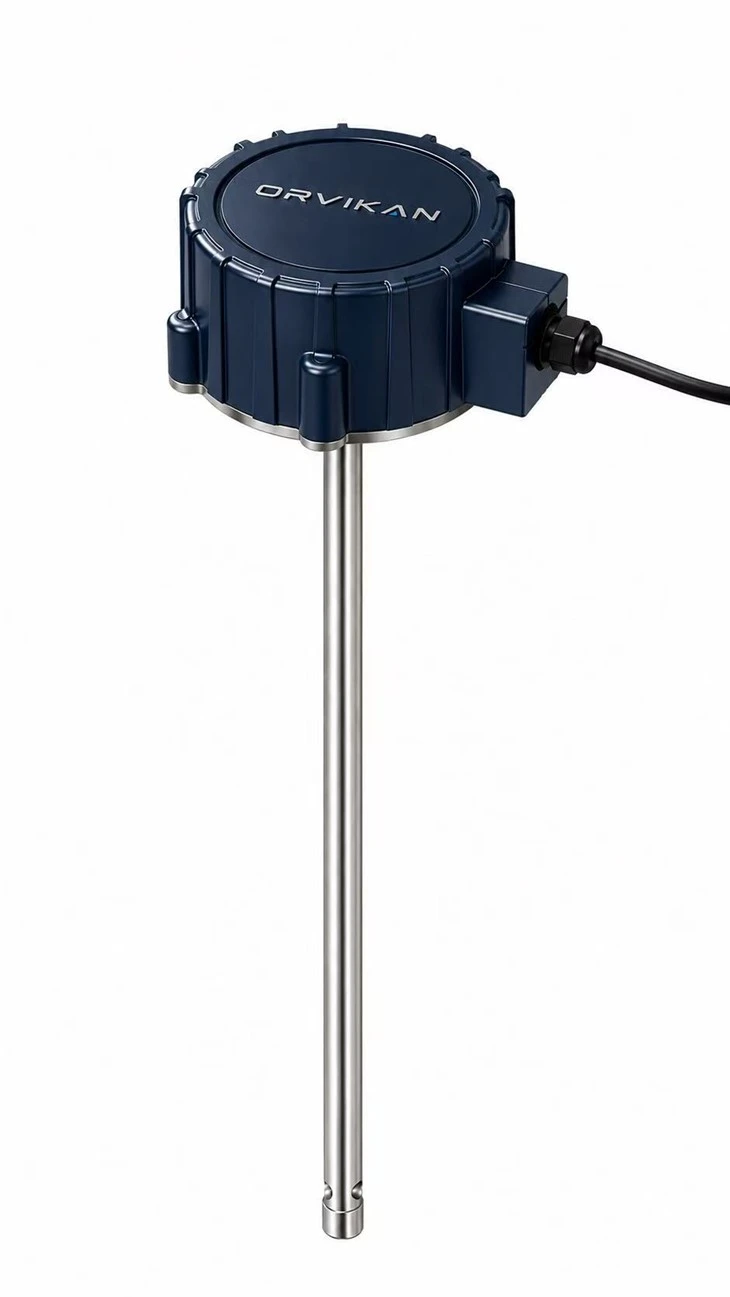

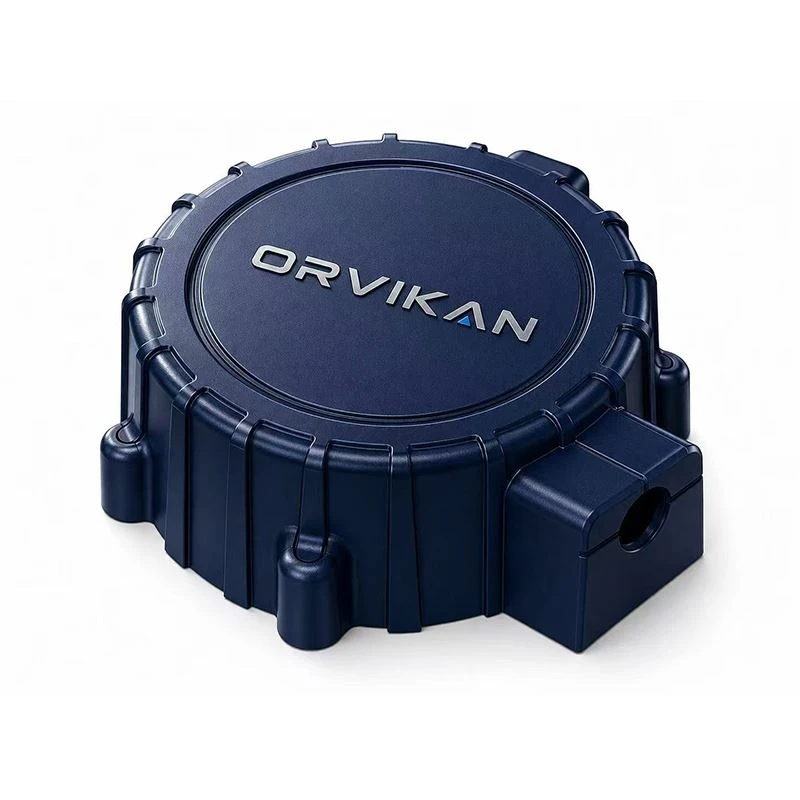

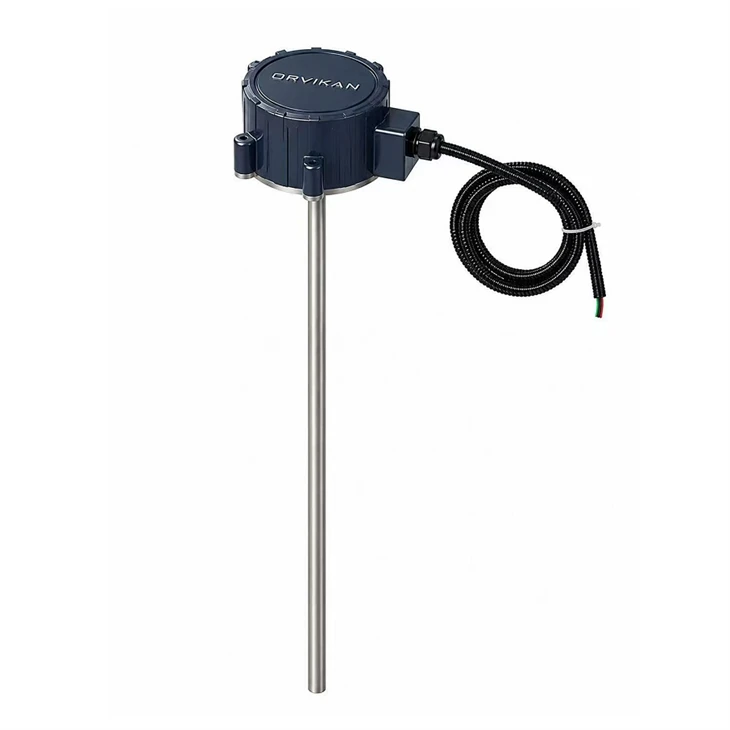

Integrated Vehicle Fuel Consumption Sensor

Shenzhen Xuneng Chuangxiang Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of integrated vehicle fuel consumption sensor in China. With abundant experience, we warmly welcome you wholesale bulk integrated vehicle fuel consumption sensor made in China here from our factory. All customized products are with high quality and competitive price.

The sensor is suitable for continuous detection of various liquids under harsh conditions such as high temperature, high pressure, strong corrosion, easy crystallization and easy blockage. Is suitable for measuring the water level of sewage, acid and alkali solution and a boiler, has no movable or elastic part on the whole, and has the advantages of impact resistance, convenient installation, high reliability and high precision. It can replace the traditional floating ball type, input type, differential pressure type and other different products in various applications.

The sensor adopts the technology of combining the capacitance sensor with the liquid level sensing gas, which not only has the characteristics of high measurement accuracy and maintenance-free of the capacitive liquid level sensor, but also can eliminate the disadvantage that the capacitive liquid level sensor is easily affected by temperature and medium. It can automatically and accurately correct the measurement errors caused by different temperatures or changing different media, so as to achieve the purpose of continuous and accurate measurement.

This sensor is a metrological measurement instrument, which uses a high-performance ARM processor with high resolution and measurement accuracy. It is automatically calibrated without human intervention, has no temperature drift, and is not affected by changes in the medium. That is to say, the same sensor, no matter the measured medium is water or gasoline or diesel, no matter how the temperature changes, it can correctly output accurate liquid level signal. It thoroughly solves the problem of difficult measurement of ethanol gasoline, methanol fuel and other media, and also solves the problem of measurement error caused by different oil labels and great temperature differences in different regions.

This equipment transmits effective data information to the server platform through its own positioning module and data transmission module, thus forming an accurate vehicle positioning and fuel monitoring system. It can evaluate the use of vehicles and the driving level of drivers, monitor the refueling situation of automobiles outside, accurately calculate the fuel consumption of automobiles per 100 kilometers, and eliminate the phenomena of oil theft, oil leakage, detour, private work, private use of buses and false invoices.

Before opening the hole, open the fuel tank cap to discharge the diesel and oil gas.

Keep the inclination when you are about to drill through.

Remove the wire iron block and remove the debris.

Screw on mounting flank.

Then install the sensor on the flange.
