Shenzhen Xuneng Chuangxiang Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 3-channel ai modular dashcam in China. With abundant experience, we warmly welcome you wholesale bulk 3-channel ai modular dashcam made in China here from our factory. All customized products are with high quality and competitive price.

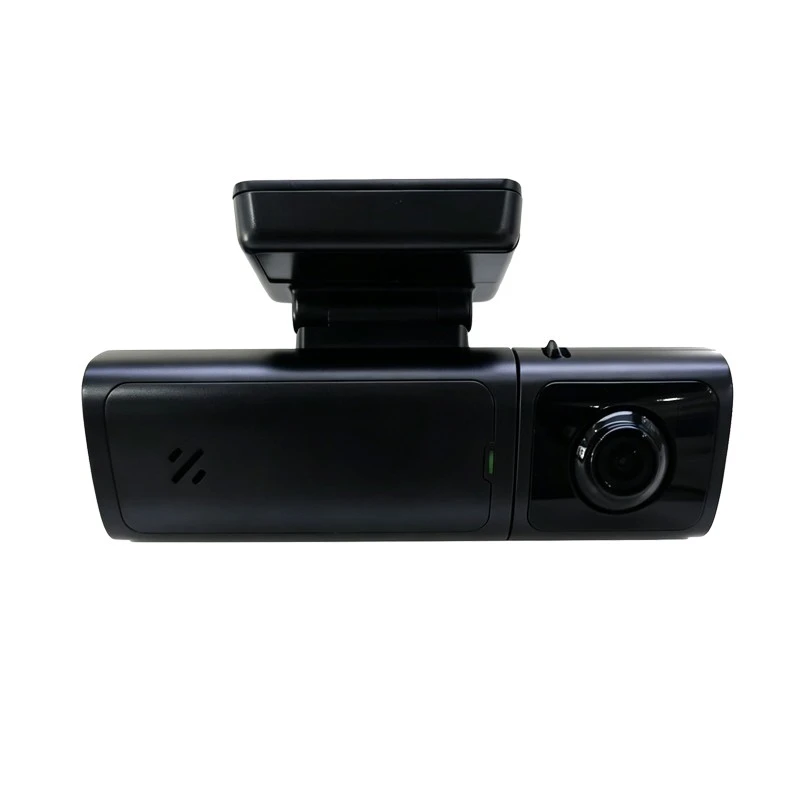

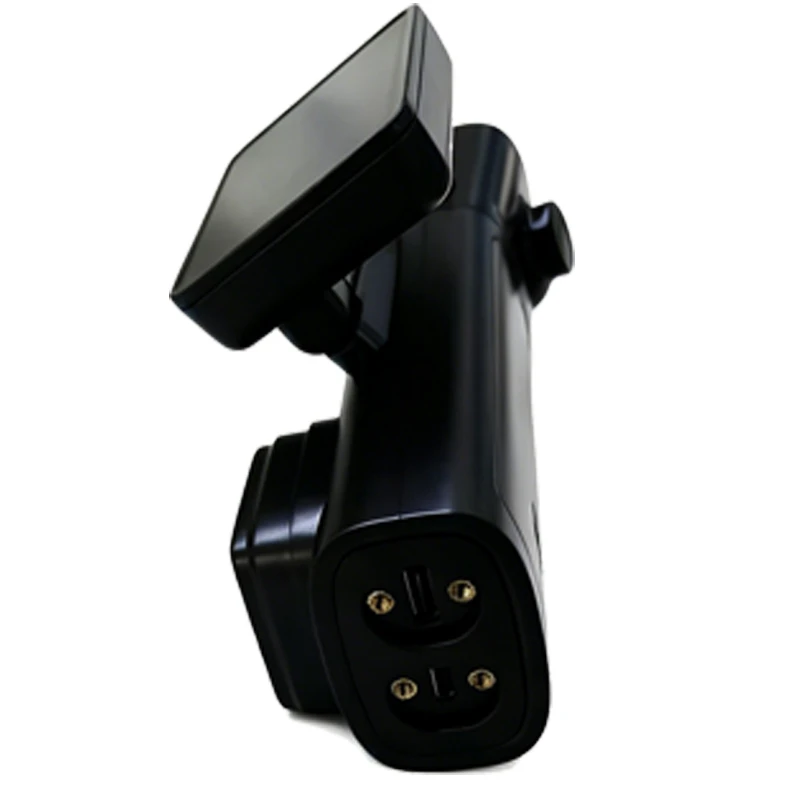

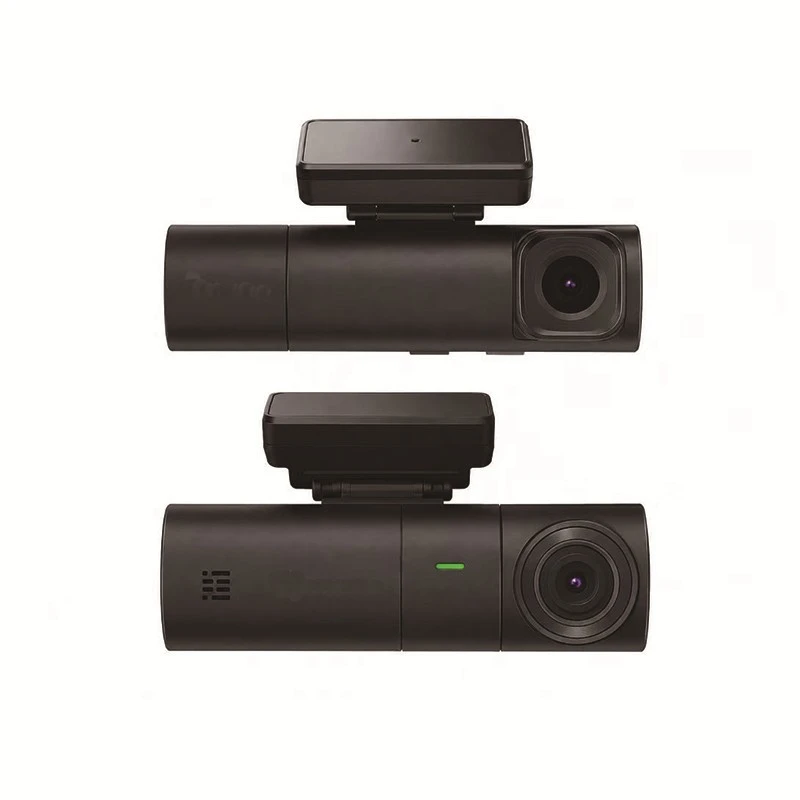

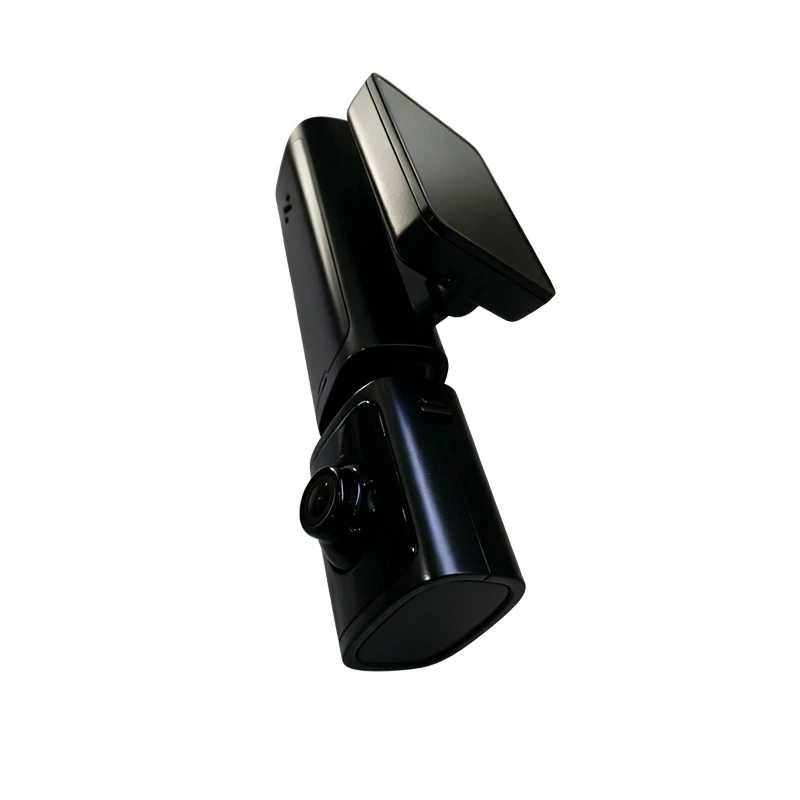

XN-S02 three-channel AI driving recorder
Core Product Functions
Three-channel synchronous video recording
Three cameras in front of the vehicle, in the vehicle and in the driver's seat record pictures simultaneously.
Built-in ADAS driving warning + DMS driver monitoring.
ADAS
Front vehicle collision warning, lane departure and other driving safety reminders.
DMS
Driver status recognition such as fatigue driving, distraction and eye closure.
4G CAT
4 All-Netcom: remote real-time viewing of video, positioning and track (commonly used in fleet management).
Multi-mode satellite positioning GNSS
Compatible with GPS, Galileo, Beidou and GLONASS satellite systems, accurate speed + position recording.
LoRa wireless communication (optional)
Short-range networking of the Internet of Things, mostly used for wireless data transmission at the fleet station.
Webpage configuration + FOTA remote upgrade
Parameter configuration of computer webpage, online firmware upgrade of equipment, no need to disassemble the machine.
Hardware Specifications
Master Control and Intelligent Algorithm
|
Project |
Parameter Description |
|
Operating System |
Linux system |
|
AI Computing Power |
1.0T OPS NPU Neural Network Processor |
|
Intelligent Algorithm |
Built-in ADAS front vehicle warning + DMS driver monitoring algorithm |
Video Specifications
Multi-channel recording
3-channel video recording; 2-channel 1080P + 1-channel 1080P/720P, H.264 encoding compression.
ADAS front view camera (vehicle front) 1080P, 2 million pixels; field angle 64 ° (vertical) × 47 ° (horizontal) × 29 ° (diagonal); focal length 6.0mm, aperture FNO 2.0.
DMS in-cabin camera (inside the vehicle) 1080P, 2 million pixels; field angle 138 ° (vertical) × 110 ° (horizontal) × 59 ° (diagonal); focal length 3.0mm, aperture FNO 1.8.
Positioning and Communication
Cellular network
4G CAT.4 All Netcom.
LTE bands
B1/2/3/4/6 6/5/7/8/20/28 (28A/28B)/38/40/41.
Satellite positioning
GPS/Galileo/Beidou/GLONASS four-mode GNSS positioning.
LoRa
Optional LoRa wireless communication module.
Electrical Specifications & Sensing Configuration
Power supply and power consumption
- Input voltage: DC 9 ~ 90 V wide voltage.
- Standby power consumption: 4.7mA under 12V working condition of the host only.
- Full-load power consumption: 390.3mA under 12 V working condition (without external camera).
Built-in battery
400 mAh 3.2 V lithium iron phosphate battery.
Environmental temperature resistance
Working temperature -20 ℃ ~ + 80 ℃; Storage temperature -40 ℃ ~ + 80 ℃.
Sensor
Three-axis G-SENSOR gravity acceleration sensor (collision sensing latch video).
Audio
Built-in microphone + 4Ω/1.5W speaker.
Physical Dimensions & Interface Specifications
Input and output IO port
- Input: VIN of vehicle power supply, ACC ignition, SOS emergency alarm, ADC analog acquisition, left steering lamp, custom high level, right steering lamp, ground GND.
- Output: oil circuit cut-off control output.
Complete machine interface
Nano-SIM card slot, power interface, Type-C debugging port, Type-C DMS camera interface, 2.5mm AHD external camera interface, TF memory card slot (single card, 32G ~ 512G, CLASS10 and above).
Appearance parameters
- Dimensions: L 139.8 × W 28 × H 41 mm.
- Weight of complete machine: 208 G.
- Indicator: red/green LED status light.
- Physical buttons: 2 (volume button + SOS emergency button).
