Shenzhen Xuneng Chuangxiang Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 4g hardwired gps tracker in China. With abundant experience, we warmly welcome you wholesale bulk 4g hardwired gps tracker made in China here from our factory. All customized products are with high quality and competitive price.

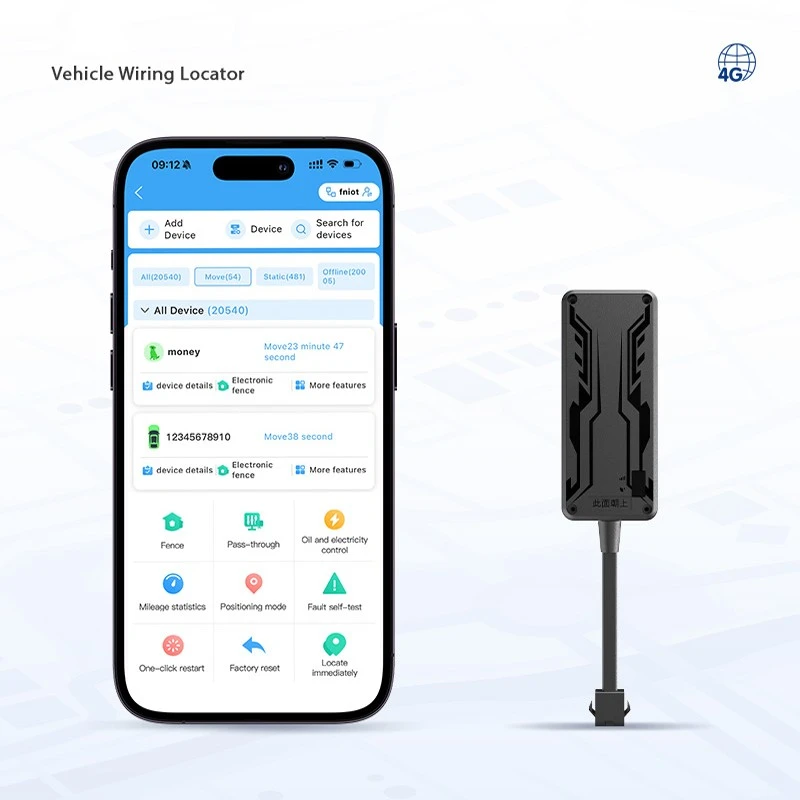

XN-D01 Car Wired 4G Locator Product Introduction
Core Product Functions
Multi-mode compound positioning (GPS + BD + WIFI + LBS)
Integration of Beidou, GPS, WIFI, base station LBS quadruple positioning technology, positioning speed is faster, point accuracy is higher, complex road conditions can also stabilize the location of the vehicle.
Real-time positioning and uploading
The equipment intelligently reports the real-time geographical location of the vehicle and grasps the current trend of the vehicle at any time and anywhere.
Historical track playback
The system automatically stores the vehicle's historical trajectory for up to 6 months, and supports the retrieval and playback of the driving route at any time.
Electronic fence alarm
The electronic fence area can be customized. When the vehicle enters/leaves the preset fence area, the equipment will automatically trigger the alarm reminder.
Overspeed alarm
Customize the vehicle speed limit threshold in the background, and push the overspeed alarm immediately when the vehicle exceeds the set speed.
Vibration alarm
When the vehicle encounters abnormal vibration, scratch and illegal movement, the abnormal vibration alarm will be triggered.
Dismantling alarm
When the equipment is dismantled without permission and the line is destroyed, the anti-demolition alarm shall be started to warn the risk of theft and demolition in time.
Real-time detection of battery voltage
After the equipment is powered on, it monitors the voltage of the on-board battery in real time all day long, which is convenient for the investigation of vehicle power loss and circuit failure.
Equipment power check
The remaining capacity of the built-in backup battery of the device can be queried at any time.
Multi-channel platform query
It supports three ways to view equipment and vehicle information, namely, SMS location checking, mobile APP and PC management platform, and messages can be pushed to mobile phones.



Hardware Specifications
|
Parameter Item |
Details |
|
Master Configuration |
4G module: NT26K0B3; GPS chip: MX18B |
|
Built-In Battery Backup |
50 mAh Lithium Polymer Battery |
|
Support Frequency Band |

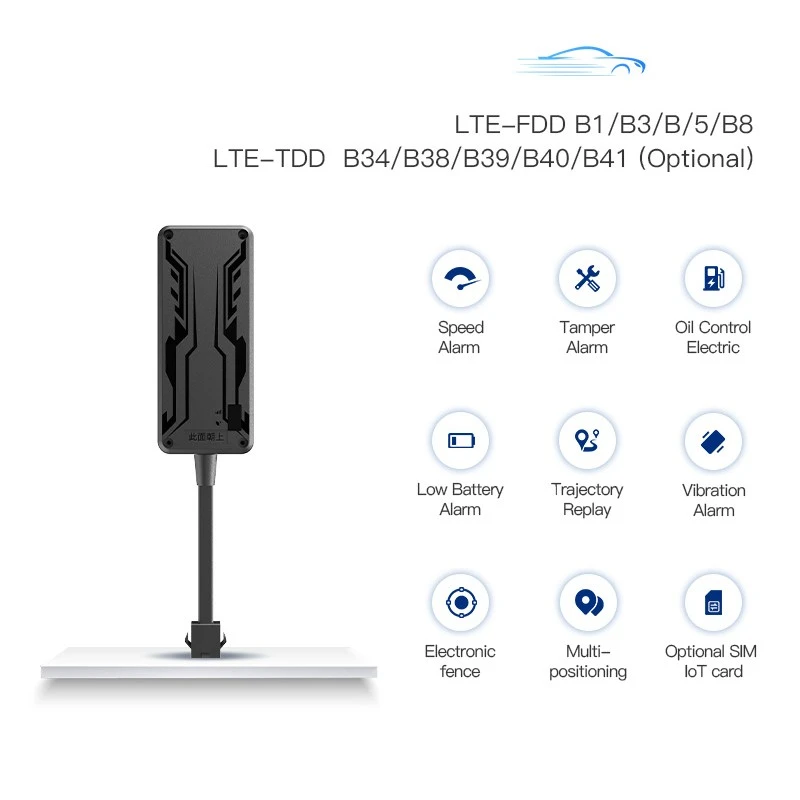

LTE-FDD: B1/B3/B5/B8; LTE-TDD: B34/B38/B39/B40/B41 |
|
Operating Voltage |
DC 9 ~ 90V wide voltage input, suitable for most fuel/new energy vehicles |
|
SIM Card Specifications |
Nano small card, clamshell card slot |
|
Antenna Configuration |
Ceramic antenna/on-board antenna/FPC soft antenna optional |
|
Size Of Complete Machine |
80.534.118.5mm |
|
ACC Detection |
Optional features |
|
Indicator Definition |
Blue light = GSM network status; Green light = GPS search status |
|
Operating Current |
Working current under 12V working condition: 40mA |
|
Shell Material |
Fire-proof flame-retardant plastic material |
|
External Line |
Standard 2-wire wiring, optional 4-wire wiring version |
Applicable Scenarios
It is widely used in vehicle positioning scenarios such as enterprise fleet management, online car booking/car rental wind control, engineering vehicle supervision, bus passenger dispatch, etc.
