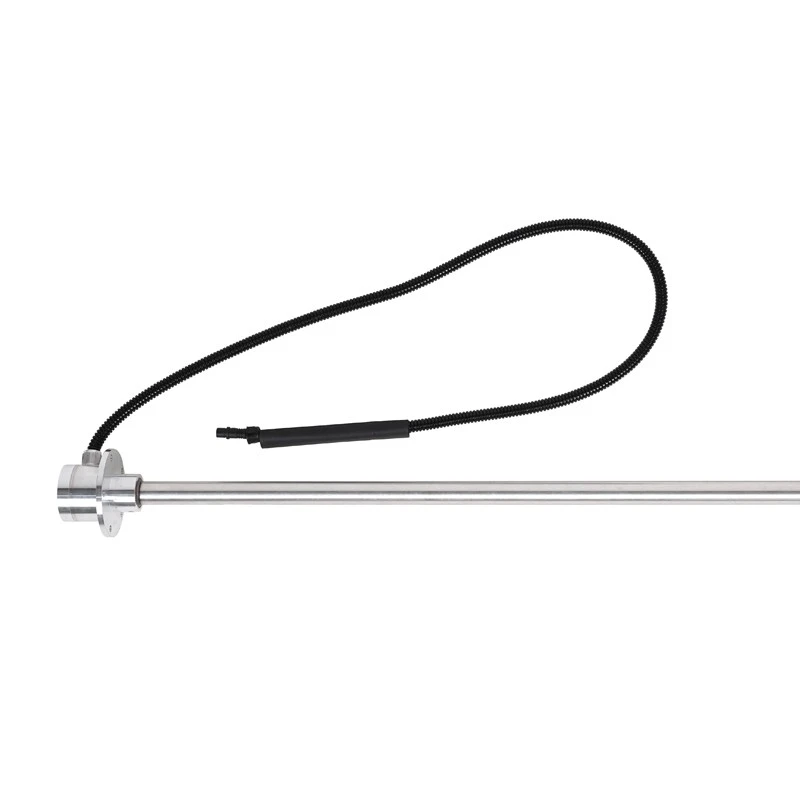

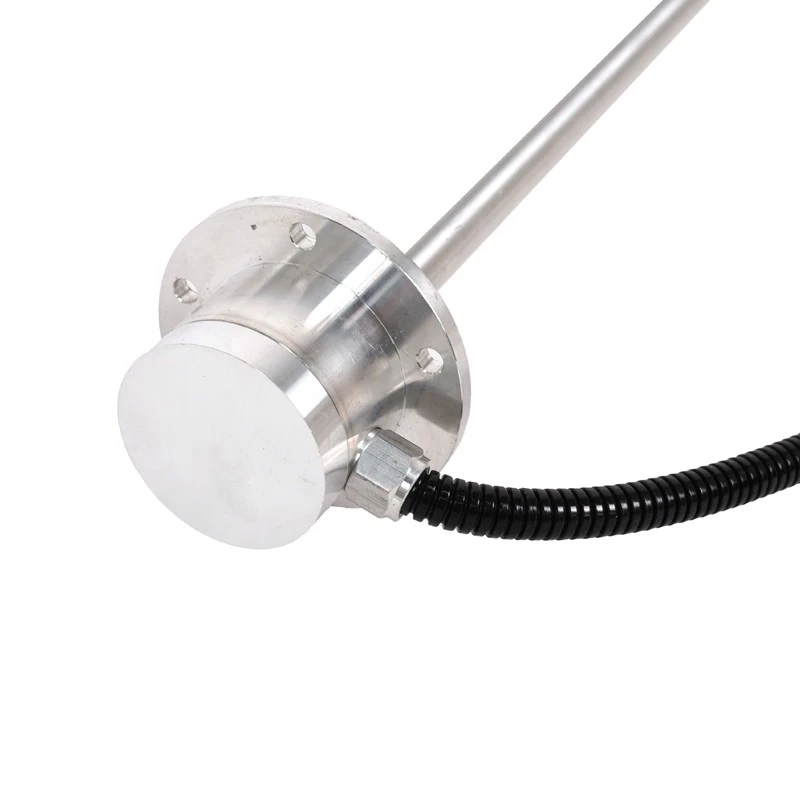

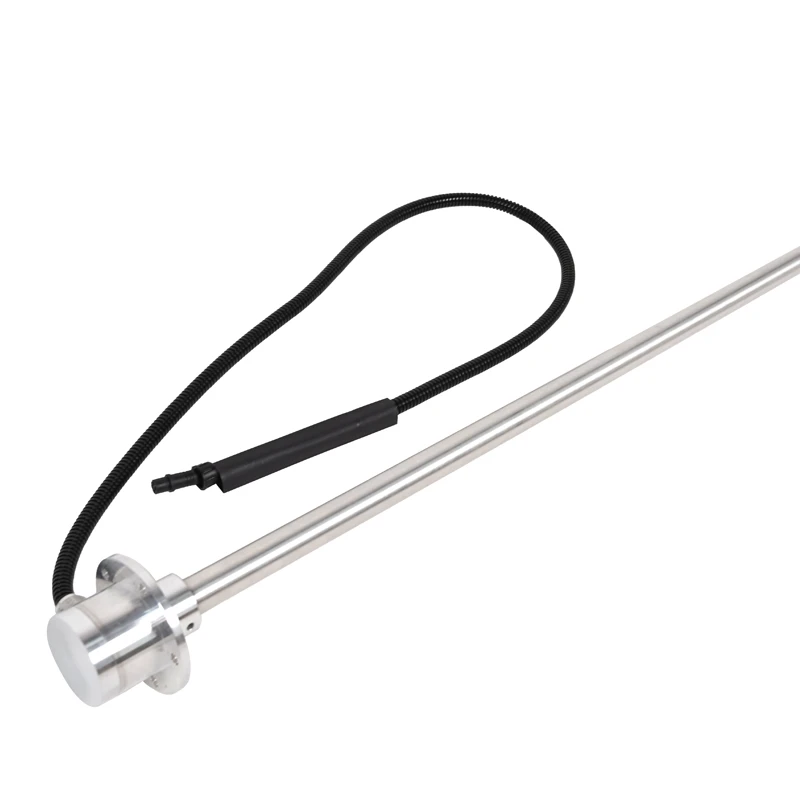

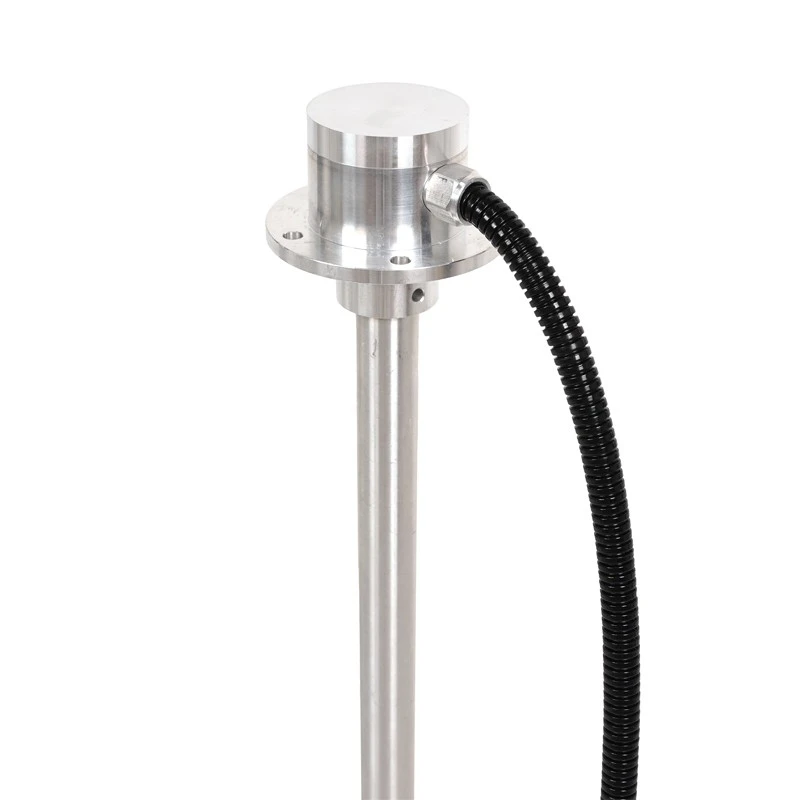

Capacitive fuel consumption sensor can be truncated (Product specification)
Features
High measurement accuracy, accuracy of 1%.
The length of the sensor can be truncated arbitrarily.
External calibrator is convenient for adjusting parameters.
SAE standard 5-hole screw lock installation, convenient and fast.
.
Good measurement continuity, strong stability, long service life of the product.
It can be adapted to GPS tracking system to monitor and record the fuel consumption of the fuel tank in real time.
It can directly replace the original car fuel level sensor and connect the original car fuel meter.
Product Applications
Yachts, generator fuel level measurement.
Diesel, biodiesel, gasoline, kerosene level detection (not for conductive media).
It is suitable for truck and bus fuel tank level detection.
Hardware Specifications
|
Project |
Parameter |
|
Range |
0 cm -70 cm |
|
Measu Rement Medium |
Gasoline, kerosene, diesel oil, etc. ( not used for conductive media) |
|
Outgoing Message |
Voltage signal: 0 ~5V, 0.5 ~4. 5v Digital signal: RS 2 3 2 , RS 4 8 5 ( customizable upon request) |
|
Power Supply Voltage |
DC 9 ~36V / 5V (wide voltage input) |
|
Accuracy |
±1% |
|
Working Temperature |
-40 ~ +80℃ |
|
Output Signal Refreshrate |
The 1 s - 1800 s is available |
|
Wire |
PVC Material ( PA bellows sheath is available) |
|
Llevels Of Protection |
IP 67 |
|
Danger Material |
alufer |
|
Way To Install |
Top loading type |
Specifications
Serial port wiring method (sensor line sequence is defined as follows: )
- RS232: This output sensor has 4 wires.
- Red Power Supply Black GND-(RS232).
- Green RS232 (RXD) computer sender Yellow RS232 (TXD) computer receiver.
- RS485: The output sensor has 4 wires.
- Red Power Supply.
- Black GND-(RS485).
- Yellow RS485 A.
- Green RS485 B.
Selection Table
|
Code Name |
Range |
||
|
X rice |
0-150cm |
||
|
Code Name |
Output |
||
|
P 1 |
RS 485 |
||
|
P 2 |
RS 232 |
||
|
P 3 |
.5-4. 50VDC |
||
|
P 4 |
0-5VDC |
||
|
Code Name |
Supply Electricity |
||
|
V 1 |
10-32VDC |
||
|
V 2 |
5VDC |
||
|
X M |
P 3 |
V 1 |
Complete model and specification |
