Shenzhen Xuneng Chuangxiang Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of vehicle fleet management gps locator in China. With abundant experience, we warmly welcome you wholesale bulk vehicle fleet management gps locator made in China here from our factory. All customized products are with high quality and competitive price.

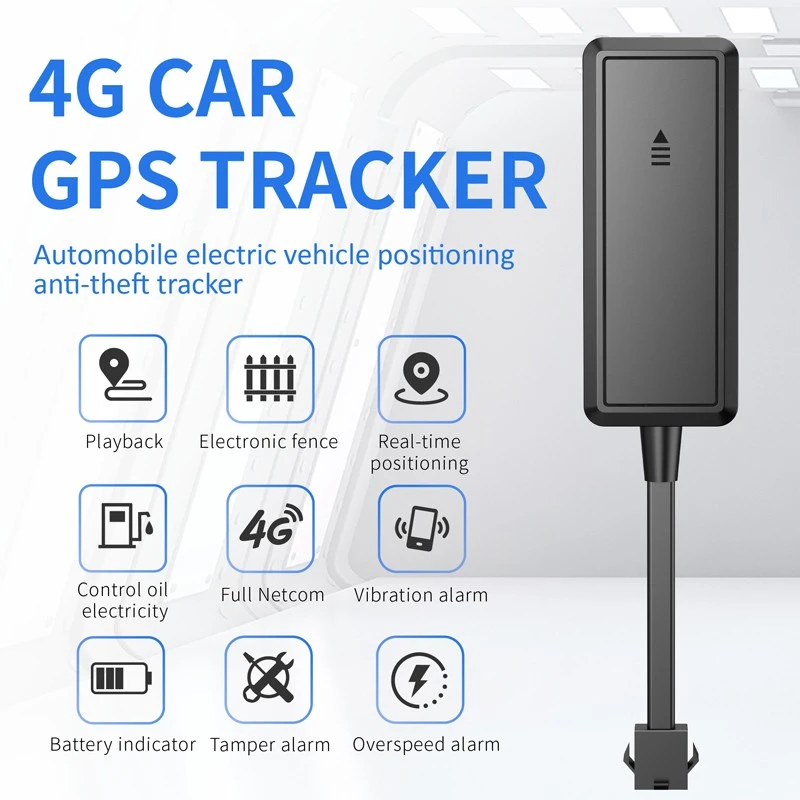

XN-D14 4G Wired Vehicle Fleet GPS Locator
Core Product Functions
GPS + Beidou + WiFi + LBS four-mode composite positioning
Multi-source collaborative positioning, open-air satellite high-precision positioning, underground garage, closed environment automatic switching WiFi + base station LBS positioning, to achieve all-weather uninterrupted tracking, positioning faster and more accurate.
6 month history track dtorage and playback
The equipment automatically retains the vehicle trajectory for nearly six months, and the mobile APP and management platform can retrieve and playback the complete driving route at any time.
Electronic fence area control
Geofence is customized in the background. When the vehicle enters/leaves the preset boundary, the system automatically pushes the fence alarm to regulate the range of vehicle driving activities.
Multiple intelligent alarms
- Overspeed alarm: customize the speed limit value, and immediately warn and remind the vehicle after overspeed.
- Vibration alarm: the alarm is triggered when the vehicle is subjected to abnormal vibration, moving or theft.
- Anti-demolition alarm: the anti-demolition alarm shall be reported immediately when the equipment line is cut and the machine is dismantled.
Features
- Real-time detection of on-board voltage: continuously monitor the battery voltage of the vehicle after power-on, and remind the abnormal power loss in real time.
- Remote fuel and power cut (exclusive to 4-line model): APP sends instructions remotely to cut off the fuel and power of the vehicle and lock the vehicle.
- Multi-channel query: the location can be queried by SMS, mobile phone push, web platform and APP, and the APP can view the power status of the device.
- National standard agreement: JT/T808 standard agreement, which is convenient to connect with the existing management system of government, enterprise and logistics fleet.
Hardware Specifications
|
Parameter Item |
Specification Details |
|
Master Control Chip |
4G module NT26KCNB0MNNC + GPS chip CC1161W |
|
Built-In Battery Backup |
50 mAh lithium polymer battery (equipment alarm is maintained for a short time after the vehicle is powered off) |
|
Operating Voltage |
DC 9 ~ 90V wide voltage (compatible with 12V trolley/24V truck/battery car) |
|
Network Frequency Band |
LTE-FDD: B1/B3/B5/B8LTE-TDD: B34/B38/B39/B40/B41 |
|
SIM Card Slot |
Flip-top Nano SIM slot |
|
Body Size |
74×30×13.4mm |
|
Weight Of Complete Machine |
2-line version 66 G; 4-wire version 77.6g |
|
Operating Current |
40 mA at 12 V |
|
Indicator Light |
Blue light = GSM network indicator; Green = GPS search indicator |
|
Shell Material |
Flame-retardant and fireproof plastic |
|
Outgoing Specification |
Optional external 2-wire (only for power supply positioning)/4-wire (including control line for oil and power cut-off) |
|
Antenna |
Ceramic vehicle antenna + FPC soft antenna |
Applicable Scenarios
- Unified intelligent management of logistics fleet, enterprise bus and online car fleet.
- Batch anti-theft tracking of electric vehicles and motorcycles.
- Risk control and supervision of automobile finance and rental vehicles.
Different Names
- 4G Hardwired Fleet GPS Tracker with JT/T808 Protocol.
- 2-Wire & 4-Wire Optional Wide Voltage Hardwired Vehicle Locator.
- Hardwired GPS with Remote Fuel Cut for EV & Car Rental Risk Control.
