Shenzhen Xuneng Chuangxiang Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of gps tracker for logistics fleet vehicles in China. With abundant experience, we warmly welcome you wholesale bulk gps tracker for logistics fleet vehicles made in China here from our factory. All customized products are with high quality and competitive price.

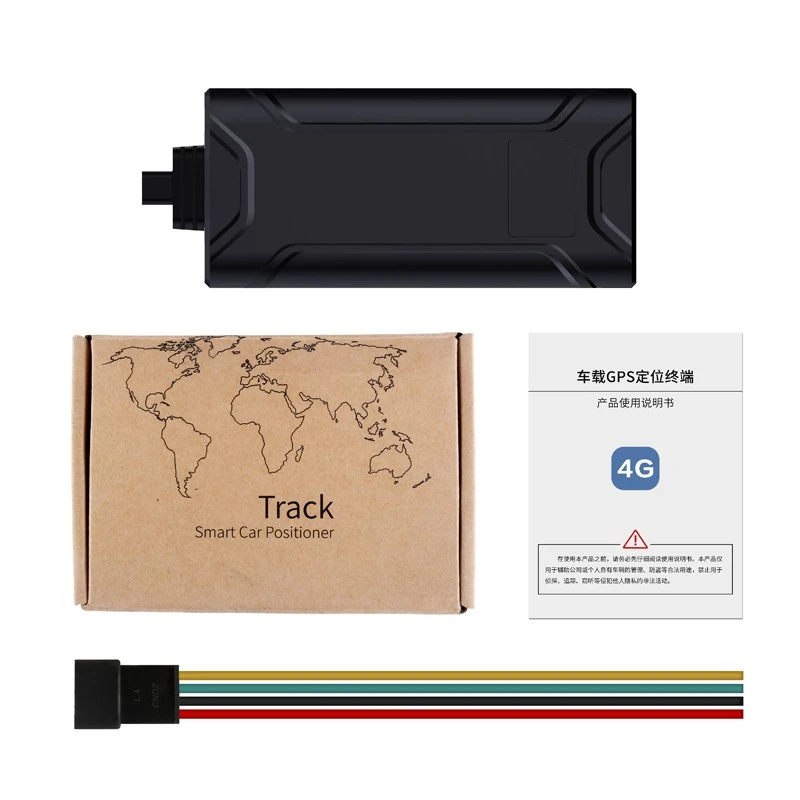

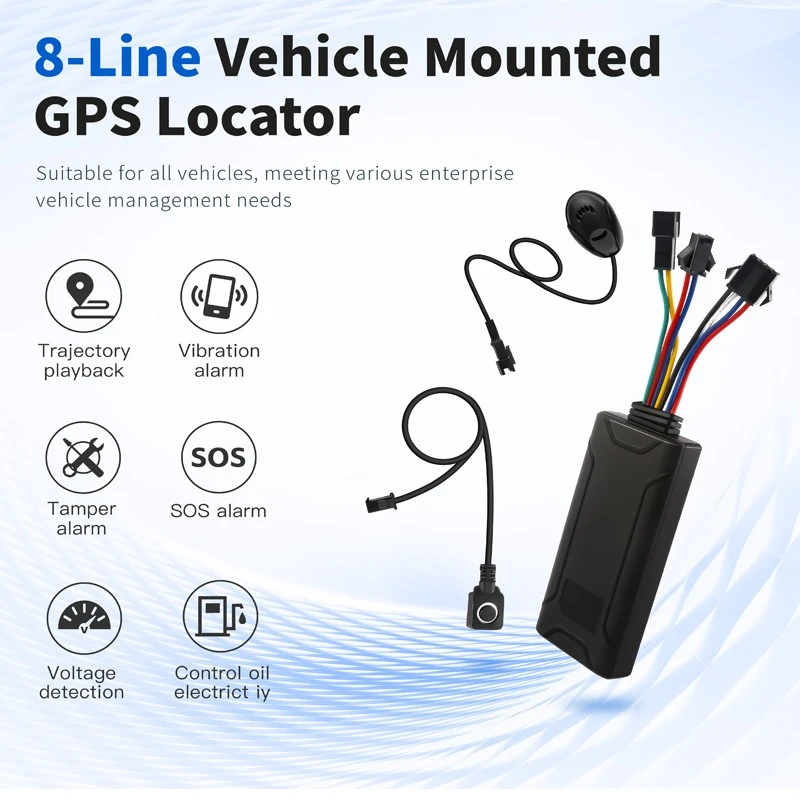

XN-D13 Logistics Company Vehicle 4G Vehicle-mounted Wiring GPS Locator
Core Product Functions
GPS + Beidou + WiFi + LBS four-mode multi-positioning
Satellite + WiFi + base station compound positioning, open-air precise satellite positioning, underground garage, closed warehouse without satellite signal, relying on WiFi/LBS base station continuous positioning, positioning speed is fast and accuracy is high.
6 month history track playback
The device automatically stores the driving track for nearly 6 months, and the mobile APP/cloud management platform can play back and export the historical driving route at any time.
Electronic fence control
The Geo-Fence area is customized in the background, and the fence alarm is automatically triggered when the vehicle drives out/into the preset area to control the range of vehicle activities.
Multi-terminal query management
Support SMS reminder, mobile message push, webpage management platform and mobile APP to view the location and power of the device.
Multi-scene intelligent alarm
- Overspeed alarm: customize the speed limit threshold, and the vehicle overspeed alarm is pushed in real time.
- Vibration alarm: warning triggered by abnormal vibration and illegal moving of the vehicle.
- Anti-disassembly alarm: immediately report the disassembly alarm when the equipment line is cut and the machine is disassembled.
Features and practical functions
- Remote fuel and power cut: The mobile phone APP sends instructions remotely, which can control the fuel and power cut of the vehicle to prevent the vehicle from losing contact.
- ACC vehicle condition detection: real-time identification of vehicle ignition/flameout status and statistics of vehicle use time.
- External pickup microphone: external microphone for remote monitoring of live sound in the vehicle.
- One-key SOS: the vehicle in distress triggers the SOS emergency call, and the platform immediately receives the help reminder.
Hardware Specifications
|
Parameter Item |
Specification Details |
|
Master Control Chip |
4G module E33 + GPS chip L76K |
|
Built-In Battery Backup |
200 mAh Li-ion polymer battery (standby for a short time after power failure) |
|
Operating Voltage |
DC 9 ~ 90V (wide voltage, suitable for 12V/24V large vehicle and small vehicle) |
|
Network Frequency Band |
LTE-FDD：B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28/ |
|
SIM Card Slot |
Clamshell Micro SIM card slot |
|
Body Size |
82×38×15mm |
|
Weight Of Complete Machine |
117g |
|
Operating Current |
＜300mA |
|
Indicator Light |
Blue light = network status indicator; Green = GPS search indicator |
|
Wiring Configuration |
External 10Pin multi-color harness, supporting fuel and electricity cutoff, ACC, SOS, and external pickup |
|
Antenna |
GPS ceramic antenna + FPC RF soft antenna |
Applicable Scenarios
- Logistics company freight fleet, passenger bus unified supervision.
- Vehicle risk control of auto finance mortgage vehicle and car rental company.
- Fine management of enterprise official vehicles and construction machinery assets.
Different Names
- Hardwired 4G Vehicle GPS Tracker for Logistics Fleet.
- 9~90V Wide Voltage Multifunctional Hardwired GPS Locator.
- Hardwired GPS Device with Fuel Cutoff, Audio Monitor & SOS for Auto Finance & Rental.
Buyer Search Behavior Words
- Fleet Management.
- Logistics Tracking.
- Freight Tracking.
- Fleet Monitoring.
- Vehicle Dispatch.
- Hardwired Logistics GPS Tracker.
- Wide Voltage Vehicle GPS (9-90V).
- Wired Fleet Management GPS.
- Cargo Truck Fleet GPS Tracker.
- GPS Terminal with ACC Detection.
