Shenzhen Xuneng Chuangxiang Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of solar-powered wireless gps tracker in China. With abundant experience, we warmly welcome you wholesale bulk solar-powered wireless gps tracker made in China here from our factory. All customized products are with high quality and competitive price.

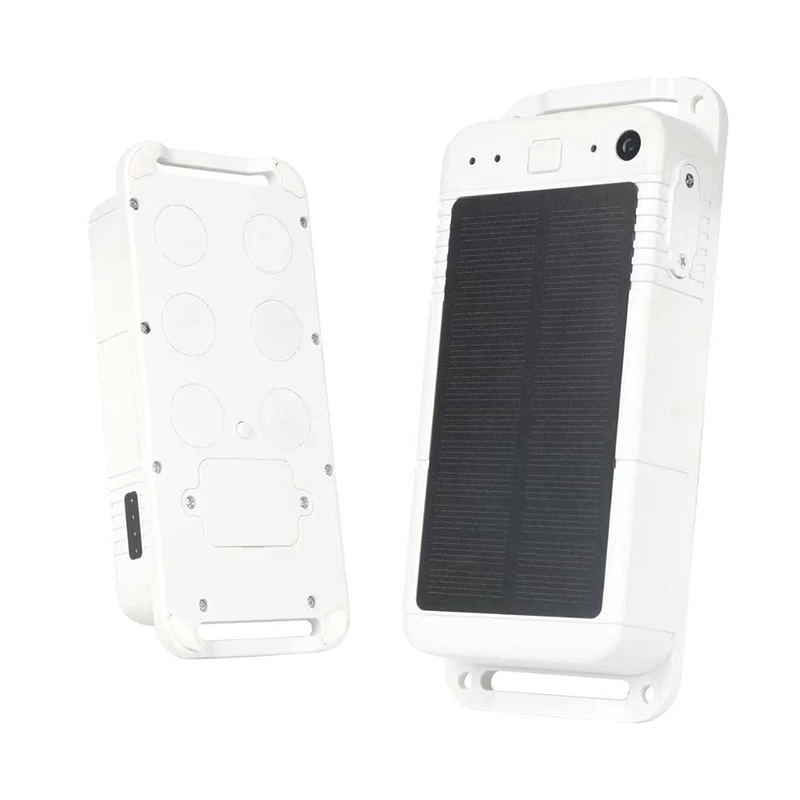

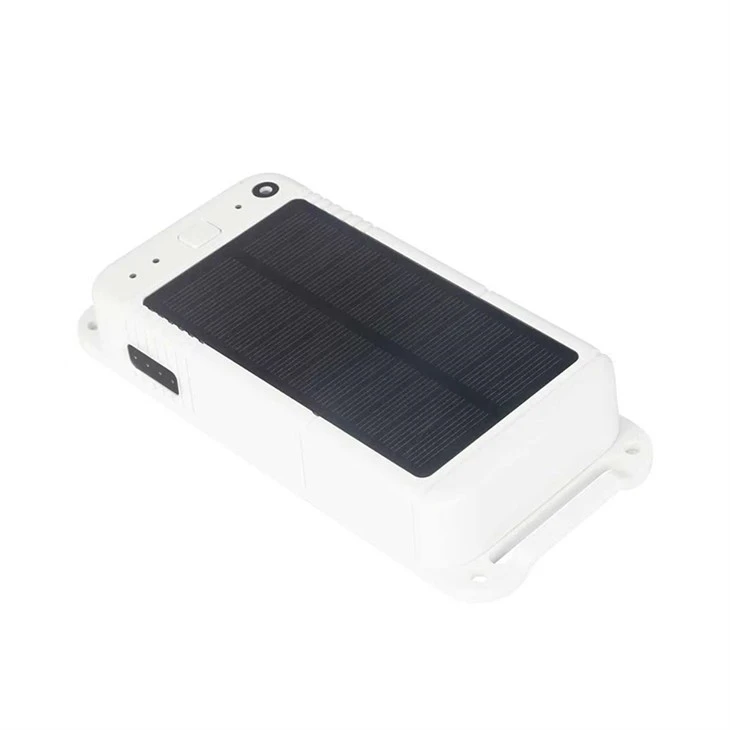

XN-T02 Wireless Solar Charging Positioning Terminal
Product introduction
4G Cat.1 Communication.
GNSS multi-satellite positioning (GPS/GALILEO/Beidou/GLONASS).
IP67 protection class.
Solar charging function.
Strong magnetic installation.
7500 mAh large capacity battery.
Configuration tool and FOTA WEB remote upgrade.
Product features
Standby/Roll call mode
Enabled when the return time is set to 0 seconds. The device sends heartbeat packets at intervals of 300 seconds, does not actively upload positioning data at ordinary times, and only uploads the latest positioning information when the platform is called, which greatly reduces power consumption.
Tracking mode
Enabled when the postback time is set to 30 seconds. The device continuously uploads positioning data such as longitude and latitude at a fixed interval of 30 seconds, and sends heartbeat packets at an interval of 300 seconds, which is suitable for scenarios requiring high-frequency real-time tracking.
Normal mode
Enabled when return time is set to 180 seconds. The device uploads the positioning data at an interval of 180 seconds, and the heartbeat return interval is 540 seconds, which takes into account the balance between the real-time positioning and the power consumption of the device, and is the default choice for general scenarios.
Dotting mode
Enabled when the postback time is set to 3600 seconds. The device uploads positioning data at an interval of 1 hour, while maintaining a heartbeat return of 300 seconds, which is suitable for low power consumption scenarios such as low frequency asset inventory and long-term location monitoring.
Equipment low voltage reminder
When the host detects that the equipment voltage is lower than 3.5V, it will actively report the low voltage reminder to the platform to avoid the equipment offline due to power exhaustion and ensure the continuity of monitoring.
Vibration alarm
Support to customize the vibration trigger threshold through platform or SMS. In the normal mode, when the vibration intensity detected by the equipment reaches the set value, the vibration alarm will be reported immediately, which can be used for anti-theft, abnormal movement and other scenarios.
Anti-tamper alarm
The function is enabled by default. When the equipment is removed, the anti-removal button bounces from the pressed state, and the equipment immediately uploads the removal alarm data to the platform, effectively preventing the equipment from being maliciously damaged or removed.
SOS emergency alarm
The function is off by default and can be turned on by command (command: < SPBSJ * P: BSJGPS * 2S: 1 >, 0 is off, 1 is on). After opening, press the SOS button for two consecutive short times to trigger the emergency alarm and send a distress signal to the platform, which is suitable for emergency rescue scenarios.
Overspeed alarm
Support setting the maximum speed limit through the platform. When the equipment detects that the GPS speed exceeds the set threshold, it immediately reports the overspeed alarm reminder, which can be used for vehicle driving safety management, fleet compliance monitoring and other scenarios.
Auxiliary positioning function
The terminal supports the auxiliary positioning technology, which can effectively enhance the positioning effect in complex environment, reduce the positioning blind area, and improve the positioning accuracy and stability.
Turning point supplementary transmission
The function is off by default and can be turned on by command (command: < SPBSJ * P: BSJGPS * 3Z: 0 >, 0 means on, 1 means off). When the equipment detects that the change of the direction angle exceeds the set threshold, it immediately uploads a piece of position data to optimize the continuity of the driving track and avoid the loss of the track at the bend and steering.
Blind zone supplementary transmission function
When the equipment is in the state of effective positioning but offline signal, it will automatically store the positioning data, and 10000 records can be stored at most; After the equipment recovers the normal online signal, upload all the stored data at one time to ensure that the track data in the area without signal is not lost.
Low power consumption static mode
Built-in 3D three-axis acceleration sensor, real-time sensing of vehicle vibration status. After the equipment is powered on, it is in the motion mode by default. When the host is stationary for 5 minutes, it will automatically enter the stationary mode and turn off the GPS module to reduce power consumption. As soon as a shock is detected, the device wakes up and switches to sport mode, balancing low power consumption with real-time responsiveness.
Solar charging function
The equipment is equipped with a solar charging module, which can automatically charge the battery of the equipment when it is exposed to sunlight. In the charging state, the indicator light is red, which effectively prolongs the endurance of the equipment and reduces the frequency of manual charging. It is suitable for outdoor application scenarios without external power supply for a long time.
Hardware Specifications
|
Project |
Parameter |
|
Data Transmission |
Support SMS (text/PDU mode) |
|
4G Band |
Standard band: B1/B2/B3/B5/B7/B8/B20/B28/B66 (B4)/B38/B41 (optional) North American band: B2/B5/B12/B17/B13/B66 (B4)/B38/B41 (optional) |
|
Positioning System |
GNSS: GPS/GALILEO/Beidou/GLONASS |
|
Tracking Sensitivity |
-165dB |
|
Capture Sensitivity |
-159dB |
|
Positioning Accuracy |
< 2.0 m CEP |
|
Hot Start Time |
<1s |
|
Cold Start Time |
<24s |
|
Operating Voltage |
DC 3.2-4.2V |
|
Battery Specifications |
3.7 V 7500mAh Li-Ion Battery |
|
Power Consumption |
Deep power saving mode: @ 3.7V 90ua Smart power saving mode: @ 3.7 V 0.8mA Tracking mode: @ 3.7V 19mA |
|
Charging Input |
Solar panel: 6V 90mA (Max) Type-C: DC 5V |
|
Battery Life (Without Self-Discharge) |
Deep power saving mode: about 3 years (positioning 2 times per day) Smart power saving mode: about 80 days (2 hours per day) Tracking mode: about 10 days |
Product size
