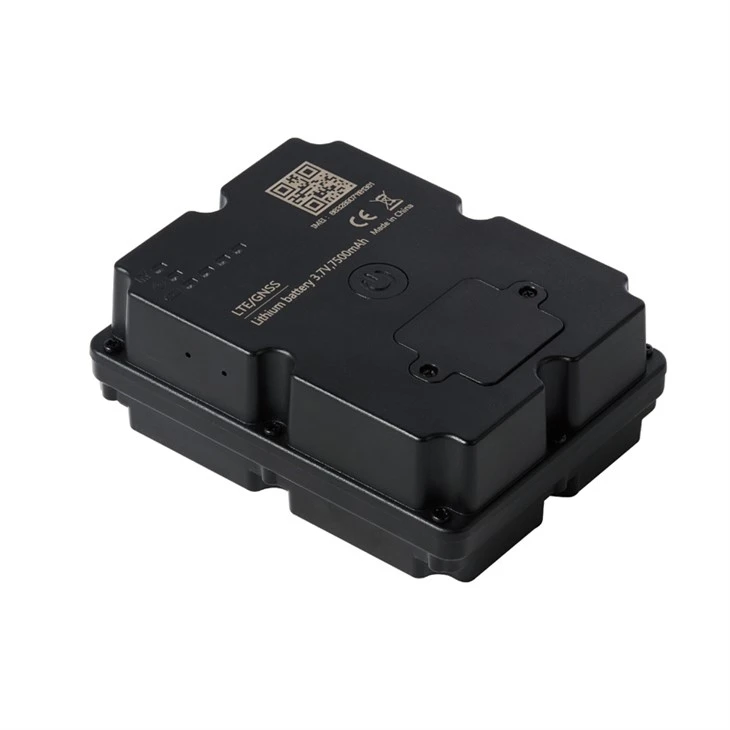

4G GPS Location Tracker
Core Product Functions
Multiple Alerts provides immediate alarm push for abnormal events such as overspeed, equipment removal, SOS emergency help, etc.
Recharge is equipped with a 7500 mAh large-capacity rechargeable lithium battery and a power indicator to visually display the power status.
IP67 Protection Against Water And Dust The IP67 rated enclosure provides reliable protection against water and dust in harsh outdoor environments.
Hardware Specifications
|
Parameter Item |
Specification Details |
|

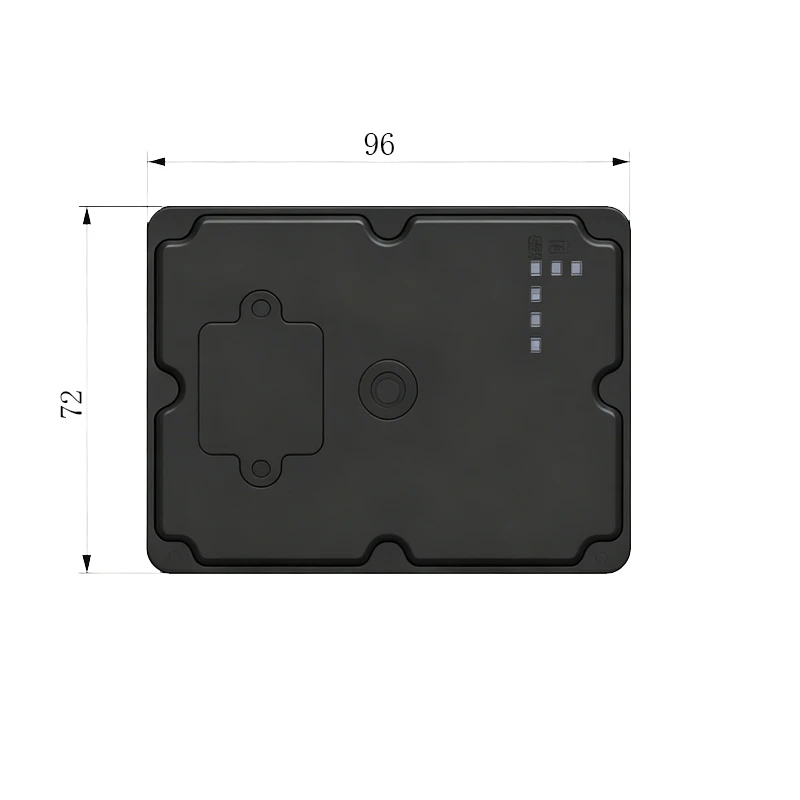

Product Size |
L95mm × W72mm × H35mm |
|
Product Weight |
70g |
|
Module Model |
BC78 |
|
Communication/Positioning Technology |
LTE CAT1 (4G)/GNSS multi-satellite positioning |
|
Support Positioning System |
GPS,GLONASS,GALILEO,QZSS |
|
Tracking Sensitivity |
-165dB |
|
Capture Sensitivity |
-149dBm |
|
Positioning Accuracy |
2.0 m CEP |
|
Speed Accuracy |
<0.1 m/s |
|
Hot Start Time |
< 1 second |
|
Cold Start Time |
< 26 seconds |
|
4G LTE CAT1 Band |
LTE-FDD: B1/B2/B3/B7/B8/B20/B28/B66/B4LTE-TDD: B38/B41 |
|
Data Transfer Rate |
LTE: 10Mbps maximum downlink/5Mbps maximum uplink |
|
Data Support |
SMS (Text/PDU Mode) |
|
Battery Specifications |
7500mAh/3.7V Li-Ion Battery |
|
Power Consumption |
Online sleep mode: @ 3.7V < 800µA Normal operating mode: @ 3.7V < 24mA |
|
Operating Temperature |
20℃ ~ +75℃ |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Degree Of Protection |
IP67 |
|
Installation Method |
Strong magnetic adsorption |
Applicable Scenarios
- Risk control and anti-theft of online car-hailing, car rental companies and mortgaged vehicles.
- Fine management of logistics freight and enterprise bus fleet.
- Batch anti-theft tracking management of electric two-wheeled vehicles and tricycles
